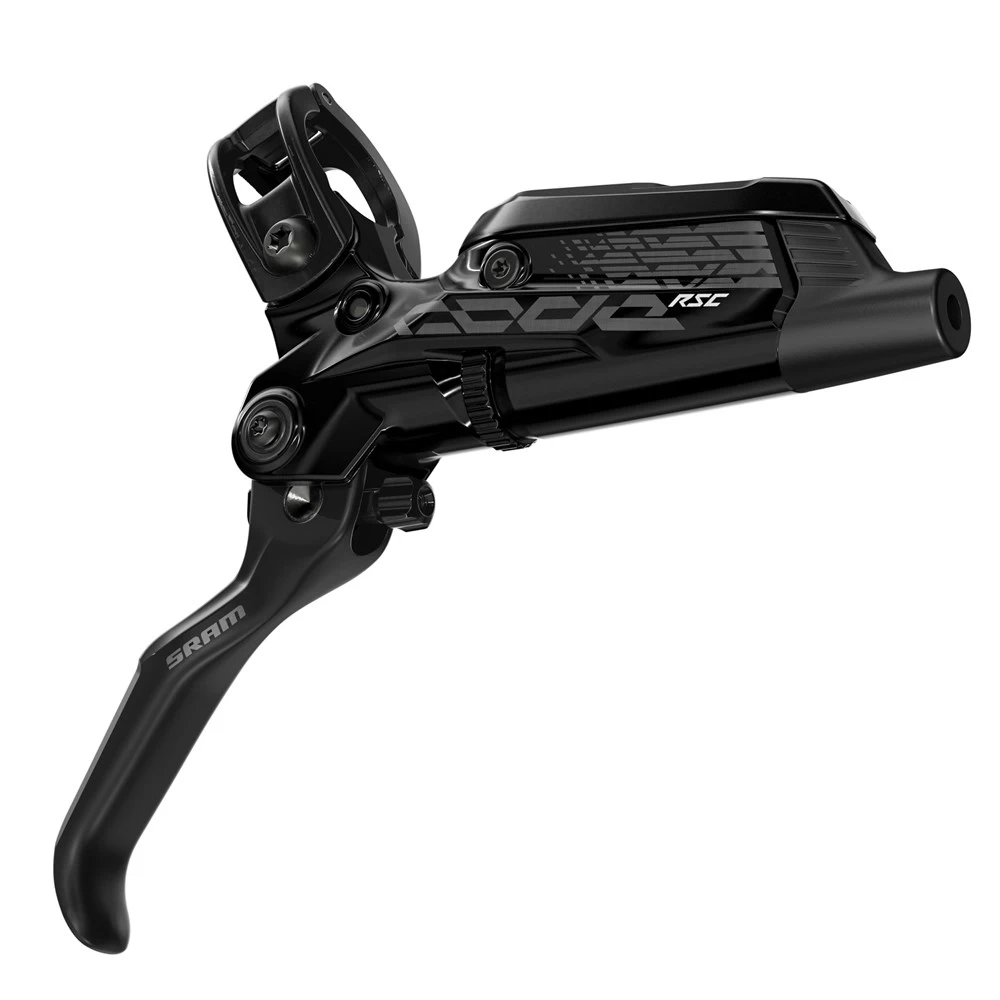

Sram Code RSC

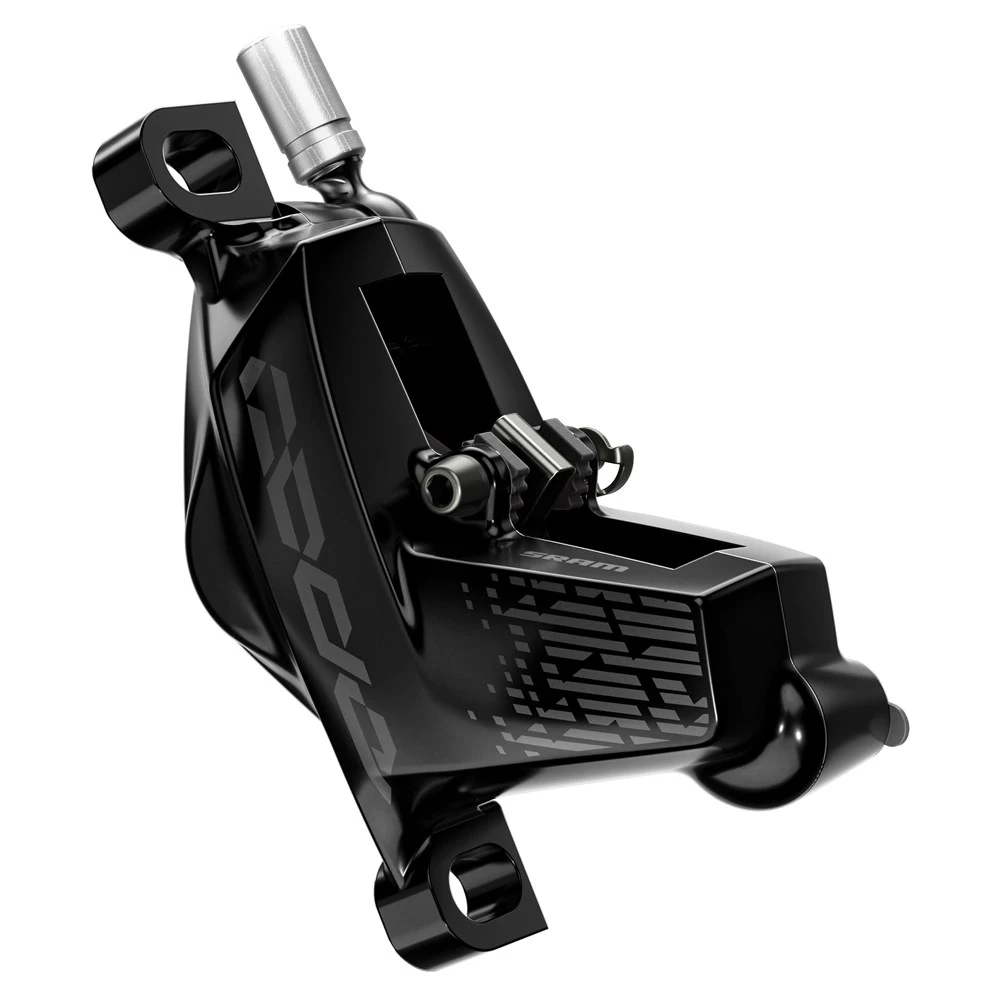

Sram Code RSC is a powerful four-piston brake designed for enduro, freeride and downhill or ebikes. Compared to the Guide model, the diameter of the pistons has been increased to 15 and 16 mm, the expansion chamber has also been increased, thanks to which the Code brakes offer 15% higher braking power. The caliper is deaerated via the Bleeding Edge, so maintenance is easy. Wide range of settings (Reach, SwingLink, Contact).

use FR / EN / DH / E-bike
design: aluminum lever mounted on an industrial bearing, technologySwing-Link, split sleeve (MatchMaker X), sintered plates (removable from above)
technologies used: Direct-Link, Expandable Bladder, Timing Port Closure, Bleeding Edge, Heat Shield
disc: Sram Centerline 160/180/200 mm (recommended, not included)
adjustment: caliper in three directions, distance of the lever from the handlebars (without tools), brake lever step length (reach adjust)
system: open – automatic adjustment of the distance of the plates from the disc, 4 pistons
brake fluid: DOT 5.1
mounting: Post Mount (adapter not included)
hose: 950 mm front / 1800 mm rear
weight: 443 g (front 160 mm complete)
note: the package contains the front or rear filled and bled brake (lever, caliper, hose, screws
