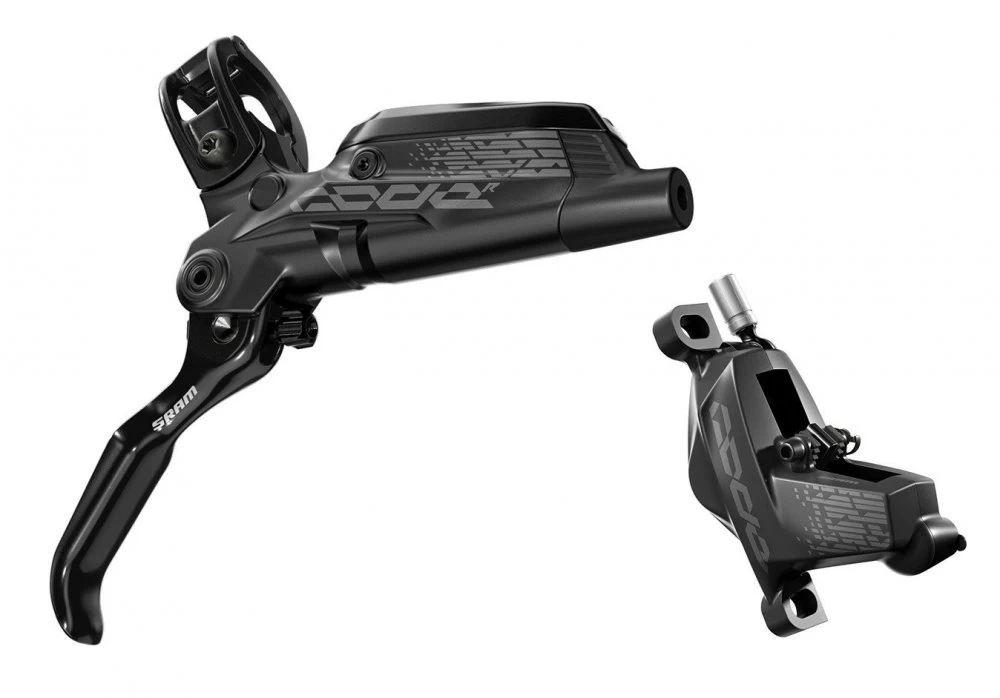

Sram Code R

Sram Code R is a powerful four-piston brake designed for enduro, freeride and downhill. Compared to the Guide model, the diameter of the pistons has been increased to 15 and 16 mm, the expansion chamber has also been increased, thanks to which the Code brakes offer 15% higher braking power. The caliper is deaerated via the Bleeding Edge, so maintenance is easy.

use FR / EN / DH
design: aluminum lever, split sleeve (MatchMaker X), sintered plates (removable from above)
usedtechnologies: Direct-Link, Expandable Bladder, Timing Port Closure, Bleeding Edge, Heat Shield
wheel: Avid Centerline 160/180/200 mm (recommended, not included)
adjustment: caliper in three directions, distance of the lever from the handlebars (without tools)
system: open – automatic adjustment of the distance of the plates from the disc, 4 pistons
brake fluid: DOT 5.1
mounting: Post Mount (adapter not included)
hose: 950 mm front / 1800 mm rear
weight: 443 g (front 160 mm set)

The package is the so-called OEM-KIT – the brake is ready (filled and vented), but it is necessary to connect the lever with the hose. Ideal for modern frames with internal guidance or for simple cheap hose shortening. Of course, we can connect the brake in case of interest – just write in the order note.
