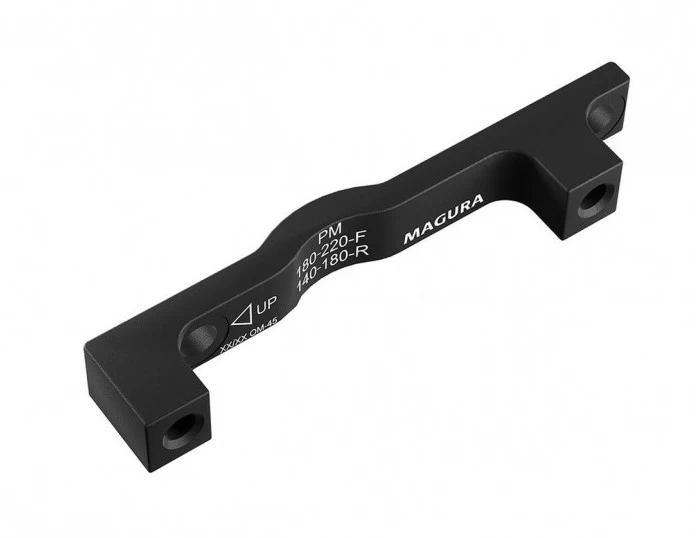

Magura QM 45

Brake adapter for brake mounting from the brand Magura model QM 45. The adapter QM 45 is designed for PM mounting on the frame / fork or caliper of the brake. With this adapter you can reduce the PM fork mount without reduction (180mm – PM 7 “) to a 220mm diameter disc, or the PM frame mount without reduction (140mm – PM 5 “) to a 180mm diameter disc, but also the PM frame mount without reduction (180mm – PM 7 “) on a disc with a diameter of 220mm. Thanks to this adapter, you can increase the diameter of the disc + 40 mm compared to mounting without an adapter. The adapter is made of very strongaluminum and supplied with M6 torx 25 screws for mounting on a frame or fork.

• brake mounting adapter from Magura model QM 45
• Magura part number 0 270 940
• The QM 45 adapter is designed for PM brake mounting
• the adapter is made of very strong aluminum
• increase of wheel diameter + 40mm compared to mounting without adapter
• supplied with M6 torx 25 screws for mounting on a frame or fork
• weight: 39g
